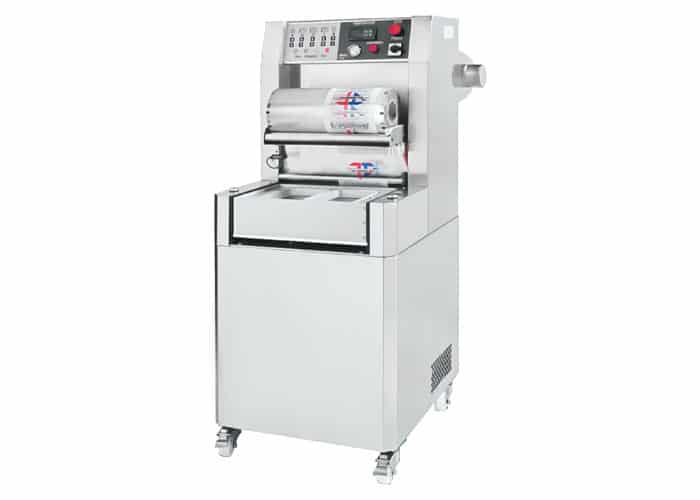

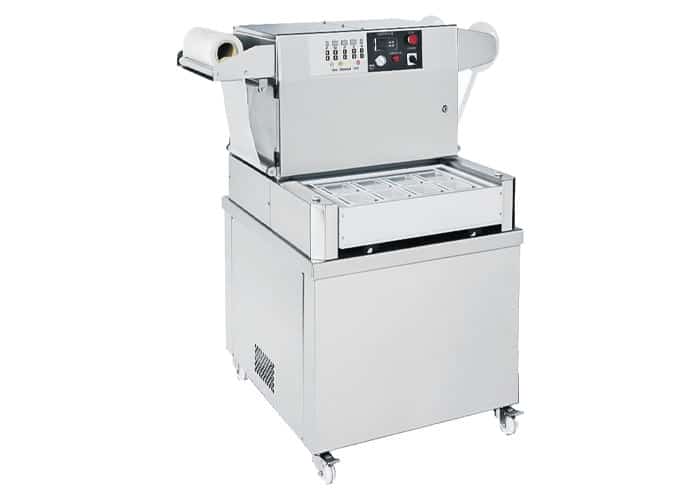

TRANSeal-SA Semi-Automatic Tray Sealing Machines
The TRANSeal Semi-Automatic Tray Sealers with vacuum and Nitrogen (or any other inert gas) flushing functions are good for production environments, butcher shops, and supermarkets. These rugged machines are made of stainless steel inside and out to meet GMP standards. With this machine, three models of different tray sizes and capacities are available to suit your requirement. Molds are made of aluminum with antioxidant treatment and easy to changeover. Two-bottom safety design for mold in and out. Programmable data storage up to 10 sets. Each stored data group can operate individually for Vacuum, Nitrogen flushing, and sealed packaging. Contact us for customized trays as customized designs are also available for your specialized production needs.
Machine Features

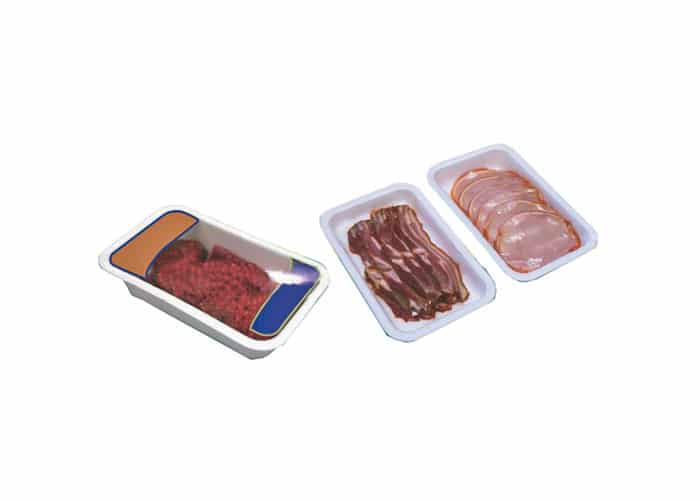

- Sealed tray package maintains product shape without deformation and makes aesthetically appealing look on supermarket shelves
- Designed ergonomically for fast, simple, and easy changeover of tray molds to minimize physical labor
- Complete stainless steel structure for maximum durability and longer machine life
- Hygienic design and easy to clean
- Highly efficient European vacuum pump for durability
- Anti-spoiling
Options
- Customized tray shape and specialized design is available for your specialized products
- Vacuum or Nitrogen Gas flushing
Applications
- Fresh meat
- Seafood
- Pickled vegetables
- Agricultural products
- Herbs
- Powders
- Spices
- Beans
- Paste
- Prepared foods, and much much more …
Standards
- In accordance with CE Standards
- Optional accordance with OSHA accredited NRTL Certification for USA and CSA for Canada
Parameter/Model | TRANSeal-SA52A | TRANSeal-SA52A80 | TRANSeal-SA52LAS | TRANSeal-SA53A |
---|---|---|---|---|
Machine dimensions | 700 x 900 x 1480 mm | 780 x 900 x 1480 mm | 1100 x 1020 x 1490 mm | 1290 x 1040 x 1490 mm |

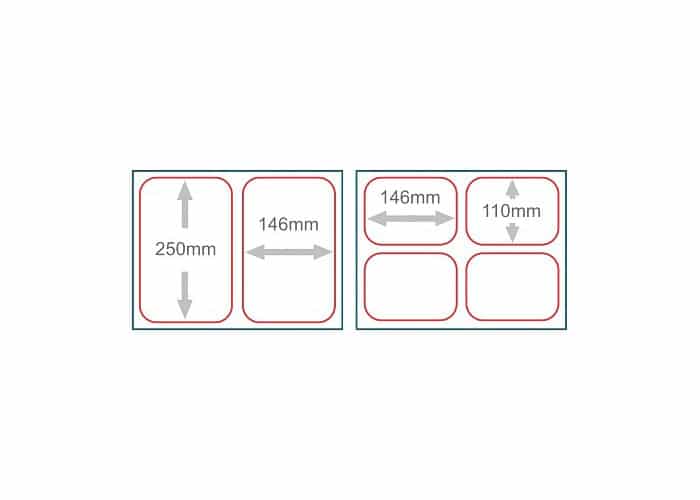

Maximum tray dimensions | 320 x 250 100 mm | 400 x 270 x 100 mm | 420 x 270 x 100 mm | 570 x 340 x 100 mm |
Air supply | 6 bar | 6 bar | 6 bar | 6 bar |
Power Supply Voltage | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz |
